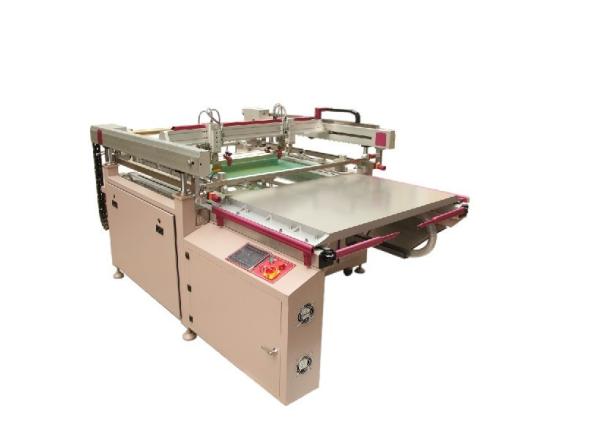

Automotive Glass Screen Printing Machine
HomeGlass Screen Printing Machine
Applications:
Suitable for large posters screen printing, stereo POP screen printing, car stickers advertising screen printing, outdoor billboards screen printing, building materials screen printing, glass screen printing, metal plating screen printing, plastic board screen printing, acrylic screen printing, wood screen printing,etc.
Specification:
* Germany motor + chain four synchronous transmission, encoding NC positioning.
* With four lock device, ensure the accuracy of the parallel printing stroke and table.
* The left arm version with height adjusting mechanism for horizontal screen correction.
* The screen frame version box back out, convenient screen printing center.
* with the fine / screen / version of the clip arm pneumatic locking, convenient and fast loading screen positioning, with inverse check valve, abnormal gas power can continue to lock.
* Panasonic servo motor synchronous lift version, avoid screen printing surface adhesion, high starting point and lift version CNC setting, automatic operation and printing speed synchronization (India end just end up)
| Model: |
TY-CP7010SP |
TY-CP95155SP |
TY-CP1323SP |
TY-CP1626SP |
| Max printing area (mm): |
700*1000 |
950*1550 |
1300*2300 |
1300*2600 |
| Working table area (mm): |
950*1200 |
1150*1950 |
1200*2000 |
1600*3000 |
| Max frame size (mm): |
1100*1500 |
1400*2100 |
1650*2700 |
1700*3250 |
| Power supply(kw/v): |
4.2/380 |
5.0/380 |
6.2/380 |
6.6/380 |
| Machine’size(L*W*Hmm): |
1900*2730*1500 |
2950*3080*1500 |
3360*3500*1500 |
3960*4000*1500 |
